l butt connectors
l butt connectors2
  •   Product name: L Butt Connectors
  •   Material:
    •   Terminal Body: Copper
    •   Plating: Tin
  •   UL: E357535
ModelWire Range

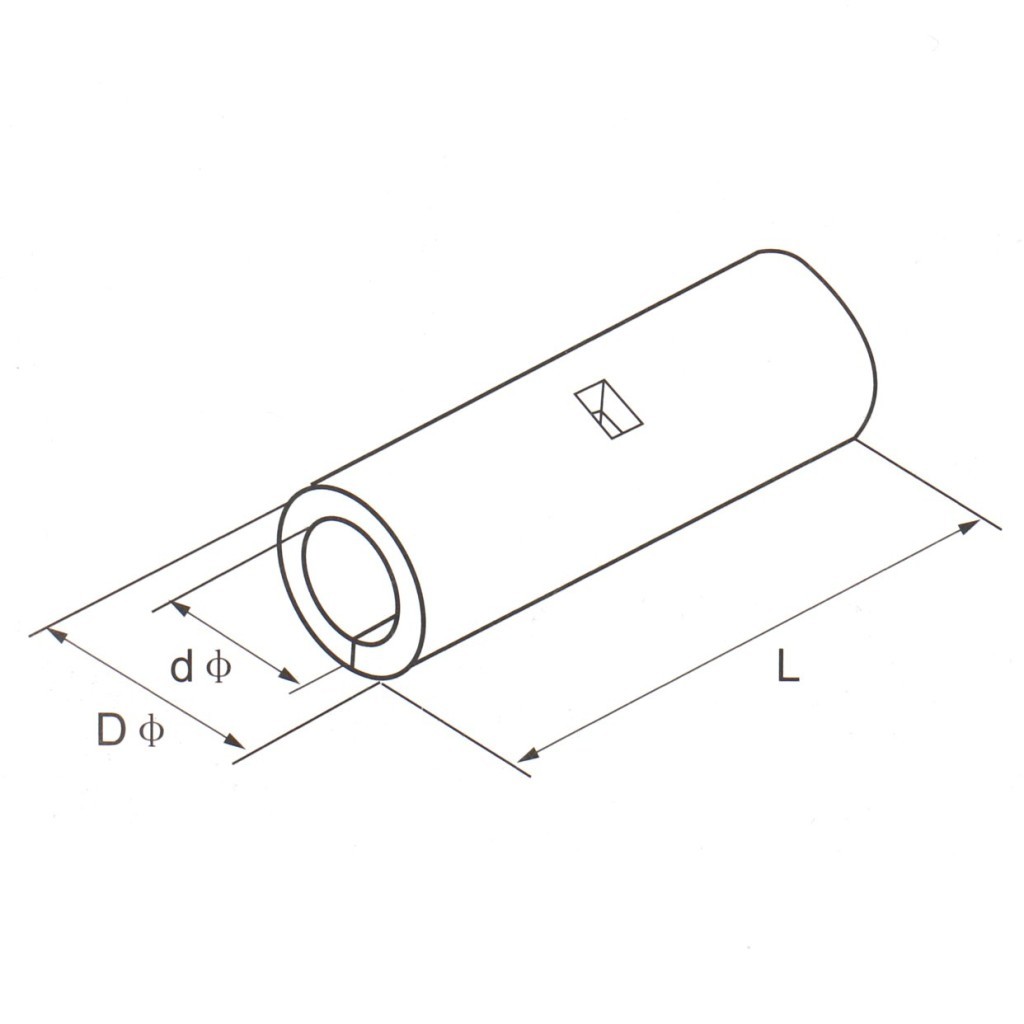

(AWG | mm2)		Dimensions (mm)
ΦD x Φd x L		QuantityOrderPrice
L1.522-16 | 0.5-1.53.7 x 1.8 x 20.0Price on request
L2.516-14 | 1.5-2.54.0 x 2.4 x 20.0Price on request
L414-12 | 2.5-4.04.8 x 3.1 x 20.0Price on request
L612-10 | 4.0-6.05.5 x 3.8 x 20.0Price on request
L108 | 10.06.2 x 4.5 x 20.0Price on request
L166 | 16.07.1 x 5.4 x 40.0Price on request
L254 | 25.08.8 x 6.8 x 45.0Price on request
L352 | 35.010.6 x 8.2 x 45.0Price on request
L501/0 | 50.012.4 x 9.5 x 45.0Price on request
L702/0 | 70.014.7 x 11.2 x 50.0Price on request
L953/0 | 95.017.4 x 13.5 x 50.0Price on request
L1204/0 | 120.019.4 x 15.0 x 55.0Price on request
L150250/300 | 150.021.2 x 16.5 x 60.0Price on request
L185300/350 | 185.023.5 x 18.5 x 65.0Price on request
L240400/500 | 240.026.5 x 21.0 x 80.0Price on request
L300500/600 | 300.030.0 x 23.5 x 85.0Price on request
L400600/750 | 400.036.5 x 28.5 x 90.0Price on request
L500800/1000 | 500.039.0 x 30.0 x 100.0Price on request
L6301000/1250 | 630.045.0 x 35.0 x 110.0Price on request
