  •   Product name: Nylon Reinforced Cable Gland
  •   Material: PA66 (Nylon), UL94-V2
  •   Hermetic seal: EPDM, Silicone rubber
  •   O-Ring: EPDM, Silicone rubber
  •   Protection degree: IP68
  •   Temperature:
    •   Static state: -40°C to 100°C, Short time to 120°C
    •   Dynamic state: -20°C to 80°C, Short time to 100°C
  •   Color customization: Grey, Black, other color cutomized

PG

ModelRange (mm)

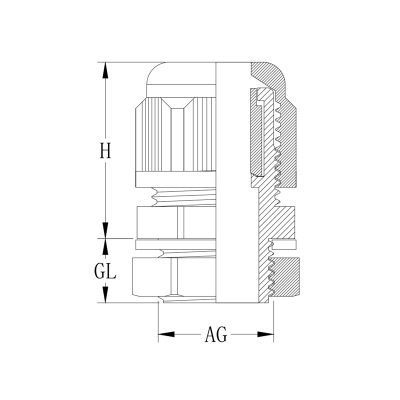

Φ		Thread Outer Diameter (mm)
AG		Thread Length (mm)
GL		Wrench Size (mm)
A/F		QuantityOrderPrice
PG73.0-6.512.58.017/15Price on request
PG74.0-8.012.59.017/19Price on request
PG94.0-8.015.29.022/19Price on request
PG92.0-5.015.29.022/19Price on request
PG116.0-10.018.69.024/22Price on request
PG114.0-8.018.69.024/22Price on request
PG13.56.0-12.020.410.027/24Price on request
PG13.55.0-10.020.410.027/24Price on request
PG1610.0-14.022.510.830/27Price on request
PG165.0-10.022.510.830/27Price on request
PG198.5-14.023.511.030/27Price on request
PG196.0-11.022.511.030/27Price on request
PG2112.5-18.028.312.036/33Price on request
PG217.0-13.028.312.036/33Price on request
PG2514.0-20.030.013.036/37Price on request
PG2918.0-25.037.015.046/41Price on request
PG2915.0-22.037.015.046/41Price on request
PG3624.0-32.047.015.057/50Price on request
PG3622.0-29.047.015.057/50Price on request
PG4231.0-41.054.015.564/62Price on request
PG4222.0-28.054.015.564/62Price on request
PG4835.0-45.059.315.570/65Price on request

M

ModelRange (mm)
Φ		Thread Outer Diameter (mm)
AG		Thread Length (mm)
GL		Wrench Size (mm)
A/F		QuantityOrderPrice
M10x1.52.5-6.010.08.012/15Price on request
M12x1.53.0-6.512.08.018/15Price on request
M12x1.54.0-8.012.09.018/19Price on request
M16x1.54.0-8.016.09.022/19Price on request
M16x1.56.0-10.016.09.022/22Price on request
M16x1.54.0-7.016.09.022/22Price on request
M18x1.56.0-10.018.09.024/22Price on request
M18x1.54.0-7.018.09.024/22Price on request
M20x1.56.0-12.020.010.027/24Price on request
M20x1.55.0-9.020.010.027/24Price on request
M20x1.58.5-14.020.010.027/27Price on request
M20x1.56.0-12.020.010.027/27Price on request
M22x1.59.0-14.022.010.029/27Price on request
M22x1.56.0-11.022.010.029/27Price on request
M25x1.58.5-14.025.012.033/27Price on request
M25x1.56.0-10.525.012.033/27Price on request
M25x1.56.0-11.025.012.033/27Price on request
M25x1.512.5-18.025.012.033/33Price on request
M25x1.57.0-13.025.012.033/33Price on request
M32x1.518.0-25.032.012.541/41Price on request
M32x1.515.0-22.032.012.541/41Price on request
M40x1.524.0-32.040.016.050/50Price on request
M40x1.518.0-25.040.016.050/50Price on request
M50x1.531.0-41.050.020.062/62Price on request
M63x1.535.0-45.063.020.075/65Price on request
