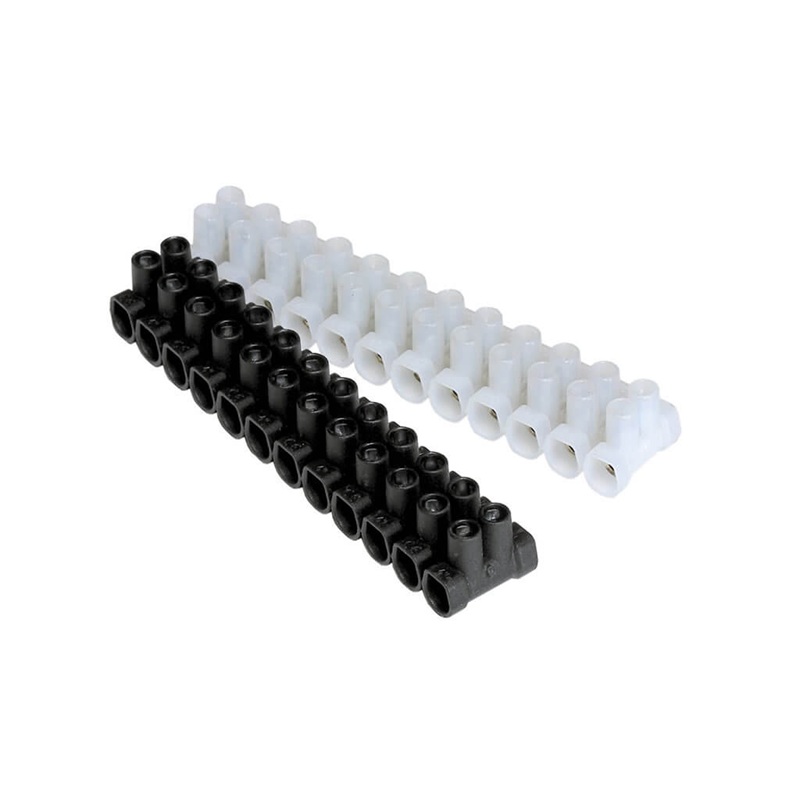

- Product name: Series 100 Terminal Strips
- Used for making electrical connections with copper conductors
- Material:
- Body: Polyamide 6, natural or black colour, V2 (according to UL94)
- Insert: nickel-plated brass
- Screws: zinc-plated steel, Metric thread
- Halogen free
- Glow wire test: 960°C according to EN 60695-2-11
- Compliance: EN 60998, CE, RoHS
| Model | Color | Solid Cable | Flexible Cable | Screw | Poles | Voltage | Current Rating | Temperature | Quantity | Order | Price |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 104 | White | 2.5 mm² / 1 mm² | 2.5 mm² / 1 mm² | M 2.6 | 12 | 450 V | 24 A | 110 °C | Price on request | ||
| 104N | Black | 2.5 mm² / 1 mm² | 2.5 mm² / 1 mm² | M 2.6 | 12 | 450 V | 24 A | 110 °C | Price on request | ||
| 106 | White | 6 mm² / 2.5 mm² | 4 mm² / 2.5 mm² | M 3 | 12 | 450 V | 41 A | 110 °C | Price on request | ||
| 106N | Black | 6 mm² / 2.5 mm² | 4 mm² / 2.5 mm² | M 3 | 12 | 450 V | 41 A | 110 °C | Price on request | ||
| 110 | White | 10 mm² / 4 mm² | 6 mm² / 4 mm² | M 3.5 | 12 | 450 V | 57 A | 110 °C | Price on request | ||
| 110N | Black | 10 mm² / 4 mm² | 6 mm² / 4 mm² | M 3.5 | 12 | 450 V | 57 A | 110 °C | Price on request | ||
| 116 | White | 16 mm² / 6 mm² | 10 mm² / 6 mm² | M 4 | 12 | 450 V | 76 A | 110 °C | Price on request | ||
| 116N | Black | 16 mm² / 6 mm² | 10 mm² / 6 mm² | M 4 | 12 | 450 V | 76 A | 110 °C | Price on request | ||
| 135 | White | 35 mm² / 16 mm² | 25 mm² / 16 mm² | M 5 | 12 | 450 V | 125 A | 110 °C | Price on request | ||
| 135N | Black | 35 mm² / 16 mm² | 25 mm² / 16 mm² | M 5 | 12 | 450 V | 125 A | 110 °C | Price on request |
