- Product name: DTL-1 Copper-Aluminium Tubular Terminals
- Type: Non-Insulated Tubular Terminal

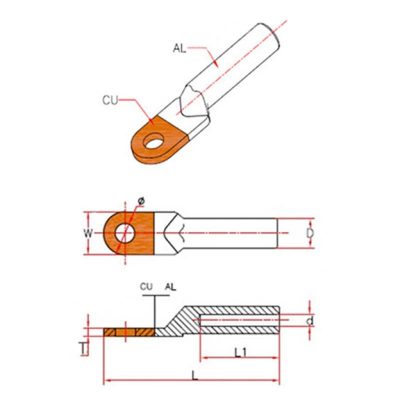

| Model | Cable Cross-section (mm2) | Dimensions (mm) Φ x D x d x L x L1 x W x T | Quantity | Order | Price |
|---|---|---|---|---|---|
| DTL1-16-8 | 16.0 | 8.5 x 11.0 x 6.1 x 70.0 x 31.0 x 16.0 x 2.2 | Price on request | ||
| DTL1-16-10 | 16.0 | 10.5 x 11.0 x 6.1 x 70.0 x 31.0 x 16.0 x 2.2 | Price on request | ||
| DTL1-25-8 | 25.0 | 8.5 x 12 x 7.1 x 75.0 x 35.0 x 18.0 x 2.8 | Price on request | ||
| DTL1-25-10 | 25.0 | 10.5 x 12 x 7.1 x 75.0 x 35.0 x 18.0 x 2.8 | Price on request | ||
| DTL1-35-8 | 35.0 | 8.5 x 14.0 x 8.5 x 85.0 x 38.0 x 20.5 x 3.0 | Price on request | ||
| DTL1-35-10 | 35.0 | 10.5 x 14.0 x 8.5 x 85.0 x 38.0 x 20.5 x 3.0 | Price on request | ||
| DTL1-50-8 | 50.0 | 8.5 x 16 x 9.8 x 90.0 x 42.0 x 23.0 x 3.4 | Price on request | ||
| DTL1-50-10 | 50.0 | 10.5 x 16 x 9.8 x 90.0 x 42.0 x 23.0 x 3.4 | Price on request | ||
| DTL1-50-12 | 50.0 | 12.5 x 16 x 9.8 x 90.0 x 42.0 x 23.0 x 3.4 | Price on request | ||
| DTL1-70-10 | 70.0 | 10.5 x 18.0 x 11.5 x 102.0 x 47.0 x 26.0 x 3.6 | Price on request | ||
| DTL1-70-12 | 70.0 | 12.5 x 18.0 x 11.5 x 102.0 x 47.0 x 26.0 x 3.6 | Price on request | ||
| DTL1-95-10 | 95.0 | 10.5 x 21.0 x 13.5 x 112.0 x 51.0 x 28.0 x 4.2 | Price on request | ||
| DTL1-95-12 | 95.0 | 12.5 x 21.0 x 13.5 x 112.0 x 51.0 x 28.0 x 4.2 | Price on request | ||
| DTL1-120-10 | 120.0 | 10.5 x 23.0 x 15.0 x 120.0 x 53.0 x 30.0 x 4.8 | Price on request | ||
| DTL1-120-12 | 120.0 | 12.5 x 23.0 x 15.0 x 120.0 x 53.0 x 30.0 x 4.8 | Price on request | ||
| DTL1-120-14 | 120.0 | 14.5 x 23.0 x 15.0 x 120.0 x 53.0 x 30.0 x 4.8 | Price on request | ||
| DTL1-150-10 | 150.0 | 10.5 x 25.0 x 17.0 x 126.0 x 56.0 x 34.0 x 5.3 | Price on request | ||
| DTL1-150-12 | 150.0 | 12.5 x 25.0 x 17.0 x 126.0 x 56.0 x 34.0 x 5.3 | Price on request | ||
| DTL1-185-10 | 185.0 | 10.5 x 27.0 x 18.6 x 133.0 x 58.0 x 37.0 x 5.8 | Price on request | ||
| DTL1-185-12 | 185.0 | 12.5 x 27.0 x 18.6 x 133.0 x 58.0 x 37.0 x 5.8 | Price on request | ||
| DTL1-185-16 | 185.0 | 16.5 x 27.0 x 18.6 x 133.0 x 58.0 x 37.0 x 5.8 | Price on request | ||
| DTL1-240-12 | 240.0 | 12.5 x 30.0 x 21.5 x 140.0 x 60.0 x 40.0 x 6.0 | Price on request |
