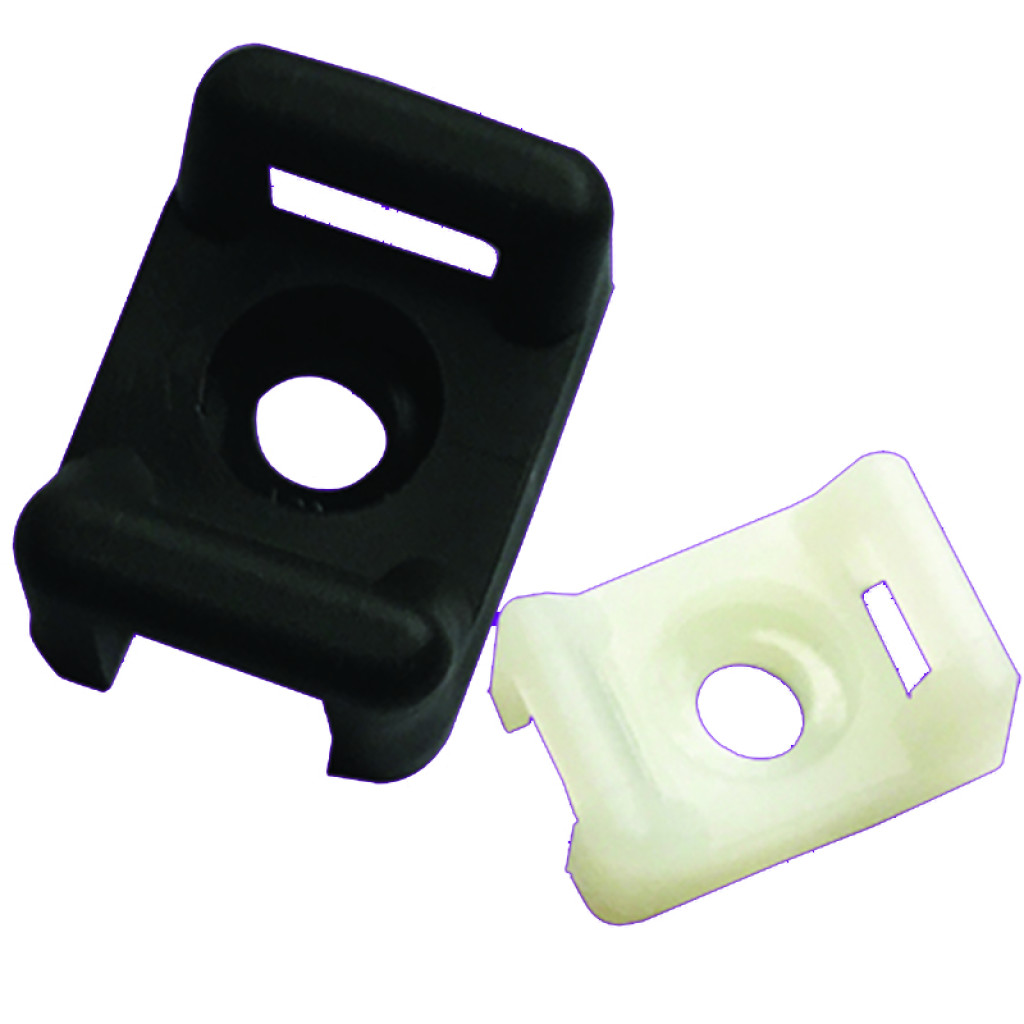

•   Product name: Cable Tie Screw Mount
  •   Material:
    •   Natural: Polyamid 6.6 natural
    •   UV Black: Polyamid 6.6 + Carbon Black
  •   Color: Natural and UV Black
  •   Flammability: UL 94 – V2
  •   Operating temperature: -40°C / +85°C
  •   Minimum Installation Temperature: -10°C
ModelDimensions (mm) L x W x H x DScrewFor Ties width (mm)ColorQuantityOrderPrice
LH-SC-M3SN16.00 x 10.74 x 6.90 x 7.00M33.6NaturalPrice on request
LH-SC-M3SB16.00 x 10.74 x 6.90 x 7.00M33.6BlackPrice on request
LH-SC-M3N18.20 x 13.00 x 8.25 x 10.10M34.8NaturalPrice on request
LH-SC-M3B18.20 x 13.00 x 8.25 x 10.10M34.8BlackPrice on request
LH-SC-M4N22.30 x 16 x 9.65 x 8.10M47.6NaturalPrice on request
LH-SC-M4B22.30 x 16 x 9.65 x 8.10M47.6BlackPrice on request
LH-SC-M5SN21.90 x 14.30 x 11.05 x 11.00M57.6NaturalPrice on request
LH-SC-M5SB21.90 x 14.30 x 11.05 x 11.00M57.6BlackPrice on request
LH-SC-M5N26.05 x 16.05 x 10.70 x 10.35M59.0NaturalPrice on request
LH-SC-M5B26.05 x 16.05 x 10.70 x 10.35M59.0BlackPrice on request
