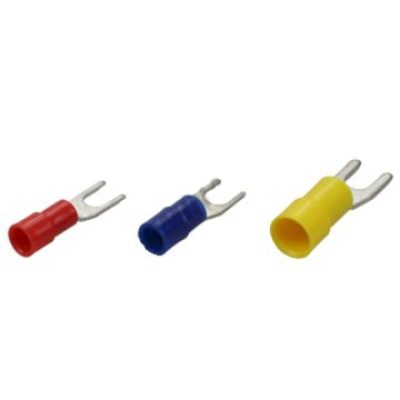

insulated spade terminals (nl)
  •   Product name: Nylon Insulated Spade Terminals
  •   Material:
    •   Insulation: Nylon
    •   Terminal Body: Copper
    •   Plating: Tin
  •   UL: E357535
ModelWire Range
(AWG | mm2)		Dimensions (mm)
ΦE x ΦD x Φd x W x B x L x T		ColorQuantityOrderPrice
NL1.25-3YS22-16 | 0.5-1.53.7 x 4.3 x 1.7 x 5.7 x 11.3 x 22.7 x 0.8REDPrice on request
NL1.25-3YSA22-16 | 0.5-1.53.2 x 4.3 x 1.7 x 5.7 x 11.3 x 22.7 x 0.8REDPrice on request
NL1.25-3YW22-16 | 0.5-1.53.7 x 4.3 x 1.7 x 6.2 x 11.3 x 22.7 x 0.8REDPrice on request
NL1.25-4YS22-16 | 0.5-1.54.3 x 4.3 x 1.7 x 6.4 x 11.3 x 22.7 x 0.8REDPrice on request
NL1.25-4YW22-16 | 0.5-1.54.3 x 4.3 x 1.7 x 7.2 x 11.3 x 22.7 x 0.8REDPrice on request
NL1.25-5Y22-16 | 0.5-1.55.3 x 4.3 x 1.7 x 8.0 x 11.3 x 22.7 x 0.8REDPrice on request
NL1.25-6Y22-16 | 0.5-1.56.7 x 4.3 x 1.7 x 10.7 x 11.3 x 23.7 x 0.8REDPrice on request
NL2-3YS16-14 | 1.5-2.53.7 x 4.6 x 2.3 x 5.7 x 11.3 x 22.7 x 0.8BLUEPrice on request
NL2-3YSA16-14 | 1.5-2.53.2 x 4.6 x 2.3 x 5.7 x 11.3 x 22.7 x 0.8BLUEPrice on request
NL2-3YW16-14 | 1.5-2.53.7 x 4.6 x 2.3 x 6.2 x 11.3 x 22.7 x 0.8BLUEPrice on request
NL2-4YS16-14 | 1.5-2.54.3 x 4.6 x 2.3 x 6.4 x 11.3 x 22.7 x 0.8BLUEPrice on request
NL2-4YW16-14 | 1.5-2.54.3 x 4.6 x 2.3 x 7.2 x 11.3 x 22.7 x 0.8BLUEPrice on request
NL2-5Y16-14 | 1.5-2.55.3 x 4.6 x 2.3 x 8.0 x 11.3 x 22.7 x 0.8BLUEPrice on request
NL2-6Y16-14 | 1.5-2.56.7 x 4.6 x 2.3 x 10.7 x 11.3 x 25.7 x 0.8BLUEPrice on request
NL5.5-3Y12-10 | 4.0-6.03.7 x 6.6 x 3.5 x 8.2 x 14.1 x 27.1 x 1.0YELLOWPrice on request
NL5.5-4Y12-10 | 4.0-6.04.3 x 6.6 x 3.5 x 8.2 x 14.1 x 27.1 x 1.0YELLOWPrice on request
NL5.5-5Y12-10 | 4.0-6.05.3 x 6.6 x 3.5 x 9.0 x 14.1 x 27.1 x 1.0YELLOWPrice on request
NL5.5-6Y12-10 | 4.0-6.06.4 x 6.6 x 3.5 x 12.0 x 14.1 x 31.8 x 1.0YELLOWPrice on request
NL8-5Y8 | 8.05.3 x 8.0 x 4.5 x 9.0 x 16.0 x 30.9 x 1.15REDPrice on request
NL8-6Y8 | 8.06.7 x 8.0 x 4.5 x 12.0 x 16.0 x 31.4 x 1.15REDPrice on request
NL8-8Y8 | 8.08.4 x 8.0 x 4.5 x 13.0 x 16.0 x 36.0 x 1.15REDPrice on request
NL8-10Y8 | 8.010.5 x 8.0 x 4.5 x 18.0 x 15.0 x 36.0 x 1.15REDPrice on request
