  •   Product name: GPH Copper Tubular Terminals
  •   Type: Non-Insulated Tubular Terminals
  •   Material:
    •   Terminal Body: Copper
    •   Plating: Tin
  •   UL: E357535

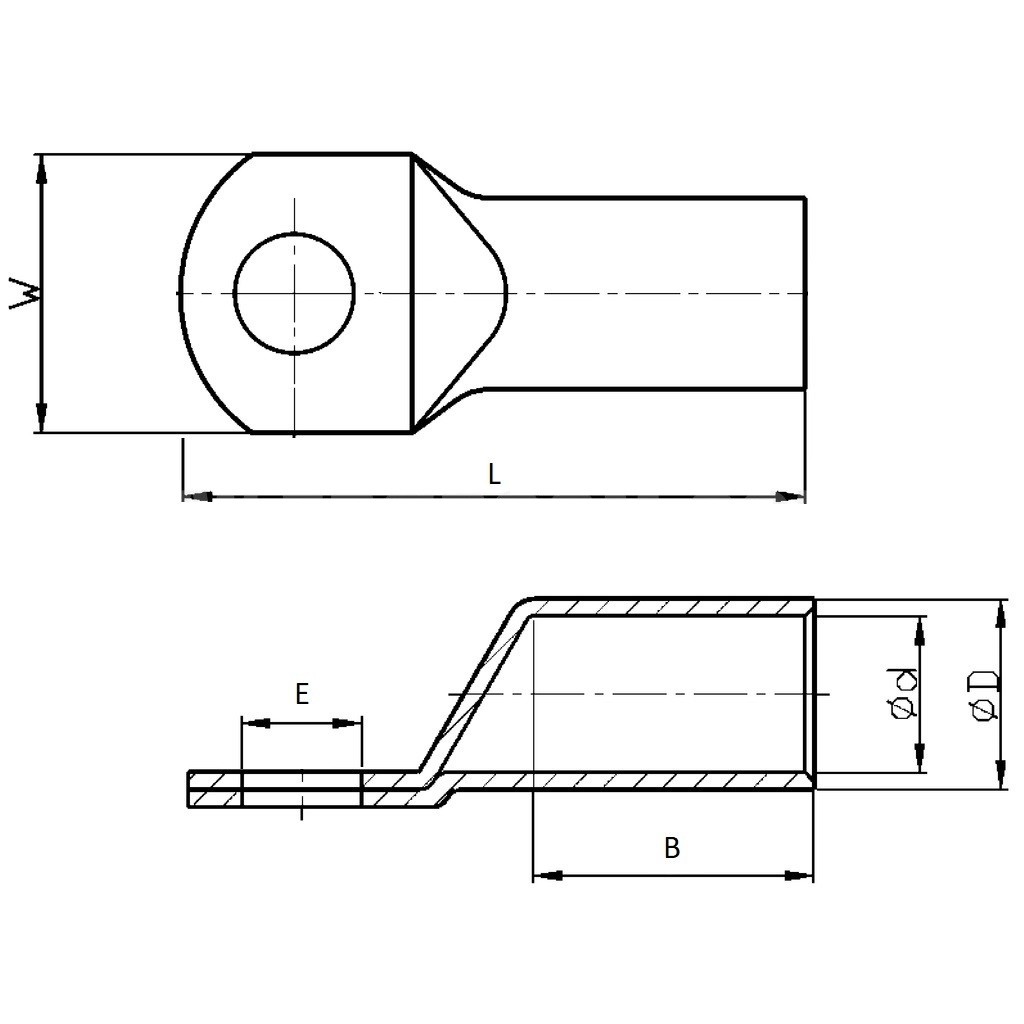

ModelWire Range
(AWG | mm2)		Dimensions (mm)
ΦE x ΦD x Φd x W x B x L		QuantityOrderPrice
GPH1.5-322-16 | 0.5-1.53.2 x 3.3 x 1.8 x 6.5 x 6.0 x 15.5Price on request
GPH1.5-422-16 | 0.5-1.54.3 x 3.3 x 1.8 x 6.5 x 6.0 x 17.5Price on request
GPH1.5-522-16 | 0.5-1.55.3 x 3.3 x 1.8 x 9.0 x 6.0 x 19.0Price on request
GPH1.5-622-16 | 0.5-1.56.4 x 3.3 x 1.8 x 9.0 x 6.0 x 22.5Price on request
GPH2.5-316-14 | 1.5-2.53.2 x 4.2 x 2.2 x 7.5 x 6.0 x 17.1Price on request
GPH2.5-416-14 | 1.5-2.54.3 x 4.2 x 2.2 x 7.5 x 6.0 x 17.1Price on request
GPH2.5-516-14 | 1.5-2.55.3 x 4.2 x 2.2 x 8.5 x 6.0 x 19.2Price on request
GPH2.5-616-14 | 1.5-2.56.4 x 4.2 x 2.2 x 9.5 x 6.0 x 22.8Price on request
GPH2.5-816-14 | 1.5-2.58.4 x 4.2 x 2.2 x 13.0 x 6.0 x 28.0Price on request
GPH4-414-12 | 2.4-4.04.3 x 5.0 x 3.0 x 8.5 x 8.0 x 21.8Price on request
GPH4-514-12 | 2.4-4.05.3 x 5.0 x 3.0 x 9.0 x 8.0 x 22.2Price on request
GPH4-614-12 | 2.4-4.06.4 x 5.0 x 3.0 x 10.0 x 8.0 x 22.2Price on request
GPH6-412-10 | 4.0-6.04.3 x 6.5 x 3.5 x 10.0 x 11.0 x 28.2Price on request
GPH6-512-10 | 4.0-6.05.3 x 6.5 x 3.5 x 10.0 x 11.0 x 28.2Price on request
GPH6-612-10 | 4.0-6.06.4 x 6.5 x 3.5 x 12.0 x 11.0 x 29.1Price on request
GPH6-812-10 | 4.0-6.08.4 x 6.5 x 3.5 x 15.0 x 11.0 x 31.8Price on request
GPH6-1012-10 | 4.0-6.010.5 x 6.5 x 3.5 x 17.0 x 11.0 x 37.0Price on request
GPH10-58 | 10.05.3 x 7.0 x 4.5 x 12.0 x 11.0 x 28.1Price on request
GPH10-68 | 10.06.4 x 7.0 x 4.5 x 12.0 x 11.0 x 29.0Price on request
GPH10-88 | 10.08.4 x 7.0 x 4.5 x 14.5 x 10.0 x 33.3Price on request
GPH10-108 | 10.010.5 x 7.0 x 4.5 x 16.0 x 11.0 x 36.9Price on request
GPH10-128 | 10.013.0 x 7.0 x 4.5 x 19.0 x 10.0 x 42.0Price on request
GPH16-56 | 16.05.3 x 8.5 x 5.5 x 12.0 x 14.0 x 33.1Price on request
GPH16-66 | 16.06.4 x 8.5 x 5.5 x 12.5 x 14.0 x 33.5Price on request
GPH16-86 | 16.08.4 x 8.5 x 5.5 x 13.8 x 14.0 x 38.0Price on request
GPH16-106 | 16.010.5 x 8.5 x 5.5 x 17.0 x 14.0 x 42.0Price on request
GPH16-126 | 16.013.2 x 8.5 x 5.5 x 20.0 x 14.0 x 44.5Price on request
GPH25-64 | 25.06.4 x 10.0 x 7.0 x 14.0 x 15.0 x 34.6Price on request
GPH25-84 | 25.08.4 x 10.0 x 7.0 x 16.0 x 15.0 x 39.0Price on request
GPH25-104 | 25.010.5 x 10.0 x 7.0 x 18.0 x 15.0 x 44.5Price on request
GPH25-124 | 25.013.2 x 10.0 x 7.0 x 20.0 x 15.0 x 47.0Price on request
GPH35-62 | 35.06.4 x 12.0 x 8.5 x 16.7 x 16.0 x 38.0Price on request
GPH35-82 | 35.08.4 x 12.0 x 8.5 x 17.5 x 17.0 x 43.0Price on request
GPH35-102 | 35.010.5 x 12.0 x 8.5 x 18.5 x 16.0 x 46.0Price on request
GPH35-122 | 35.013.2 x 12.0 x 8.5 x 21.3 x 16.0 x 50.0Price on request
GPH50-61/0 | 50.06.4 x 14.0 x 10.0 x 21.0 x 19.0 x 47.0Price on request
GPH50-81/0 | 50.08.4 x 14.0 x 10.0 x 21.0 x 19.0 x 47.0Price on request
GPH50-101/0 | 50.010.5 x 14.0 x 10.0 x 21.0 x 19.0 x 51.2Price on request
GPH50-121/0 | 50.013.2 x 14.0 x 10.0 x 21.5 x 19.0 x 52.0Price on request
GPH50-161/0 | 50.017.0 x 14.0 x 10.0 x 28.0 x 19.0 x 65.0Price on request
GPH70-62/0 | 70.06.4 x 16.5 x 12.0 x 23.2 x 21.0 x 52.0Price on request
GPH70-82/0 | 70.08.4 x 16.5 x 12.0 x 23.2 x 21.0 x 52.0Price on request
GPH70-102/0 | 70.010.5 x 16.5 x 12.0 x 23.2 x 21.0 x 52.0Price on request
GPH70-122/0 | 70.013.2 x 16.5 x 12.0 x 23.2 x 21.0 x 55.7Price on request
GPH70-162/0 | 70.017.0 x 16.5 x 12.0 x 28.0 x 21.0 x 67.0Price on request
GPH70-202/0 | 70.021.0 x 16.5 x 12.0 x 30.0 x 21.0 x 70.5Price on request
GPH95-63/0 | 95.06.4 x 18.0 x 13.5 x 26.0 x 25.0 x 59.0Price on request
GPH95-83/0 | 95.08.4 x 18.0 x 13.5 x 26.0 x 25.0 x 59.0Price on request
GPH95-103/0 | 95.010.5 x 18.0 x 13.5 x 26.0 x 25.0 x 59.0Price on request
GPH95-123/0 | 95.013.2 x 18.0 x 13.5 x 26.0 x 25.0 x 61.0Price on request
GPH95-163/0 | 95.017.0 x 18.0 x 13.5 x 28.0 x 25.0 x 74.0Price on request
GPH95-203/0 | 95.021.0 x 18.0 x 13.5 x 30.0 x 25.0 x 79.0Price on request
GPH120-84/0 | 120.08.4 x 19.5 x 15.0 x 28.0 x 27.0 x 68.0Price on request
GPH120-104/0 | 120.010.5 x 19.5 x 15.0 x 28.0 x 27.0 x 68.0Price on request
GPH120-124/0 | 120.013.2 x 19.5 x 15.0 x 28.0 x 27.0 x 68.0Price on request
GPH120-164/0 | 120.017.0 x 19.5 x 15.0 x 30.0 x 27.0 x 74.0Price on request
GPH120-204/0 | 120.021.0 x 19.5 x 15.0 x 32.0 x 27.0 x 80.0Price on request
GPH150-8250/300 | 150.08.4 x 21.2 x 16.5 x 30.6 x 30.0 x 71.0Price on request
GPH150-10250/300 | 150.010.5 x 21.2 x 16.5 x 30.6 x 30.0 x 71.0Price on request
GPH150-12250/300 | 150.013.2 x 21.2 x 16.5 x 30.6 x 30.0 x 71.0Price on request
GPH150-16250/300 | 150.017.0 x 21.2 x 16.5 x 30.6 x 30.0 x 77.0Price on request
GPH150-20250/300 | 150.021.0 x 21.2 x 16.5 x 30.6 x 30.0 x 85.0Price on request
GPH185-8300/350 | 185.08.4 x 24.2 x 19.0 x 35.1 x 32.0 x 79.0Price on request
GPH185-10300/350 | 185.010.5 x 24.2 x 19.0 x 35.1 x 32.0 x 79.0Price on request
GPH185-12300/350 | 185.013.2 x 24.2 x 19.0 x 35.1 x 32.0 x 79.0Price on request
GPH185-16300/350 | 185.017.0 x 24.2 x 19.0 x 35.1 x 32.0 x 83.0Price on request
GPH185-20300/350 | 185.021.0 x 24.2 x 19.0 x 35.1 x 32.0 x 88.0Price on request
GPH240-10400/500 | 240.010.5 x 26.2 x 21.0 x 37.7 x 36.0 x 89.0Price on request
GPH240-12400/500 | 240.013.2 x 26.2 x 21.0 x 37.7 x 36.0 x 89.0Price on request
GPH240-16400/500 | 240.017.0 x 26.2 x 21.0 x 37.7 x 36.0 x 89.0Price on request
GPH240-20400/500 | 240.021.0 x 26.2 x 21.0 x 37.7 x 36.0 x 95.0Price on request
GPH300-10500/600 | 300.010.5 x 30.2 x 24.0 x 44.0 x 44.0 x 110.0Price on request
GPH300-12500/600 | 300.013.2 x 30.2 x 24.0 x 44.0 x 44.0 x 110.0Price on request
GPH300-16500/600 | 300.017.0 x 30.2 x 24.0 x 44.0 x 44.0 x 110.0Price on request
GPH300-20500/600 | 300.021.0 x 30.2 x 24.0 x 44.0 x 44.0 x 110.0Price on request
GPH400-10600/750 | 400.010.5 x 33.7 x 27.5 x 49.0 x 50.0 x 119.0Price on request
GPH400-12600/750 | 400.013.0 x 33.7 x 27.5 x 49.0 x 50.0 x 119.0Price on request
GPH400-16600/750 | 400.017.0 x 33.7 x 27.5 x 49.0 x 50.0 x 119.0Price on request
GPH400-20600/750 | 400.021.0 x 33.7 x 27.5 x 49.0 x 50.0 x 119.0Price on request
