Waterproof Connectors -

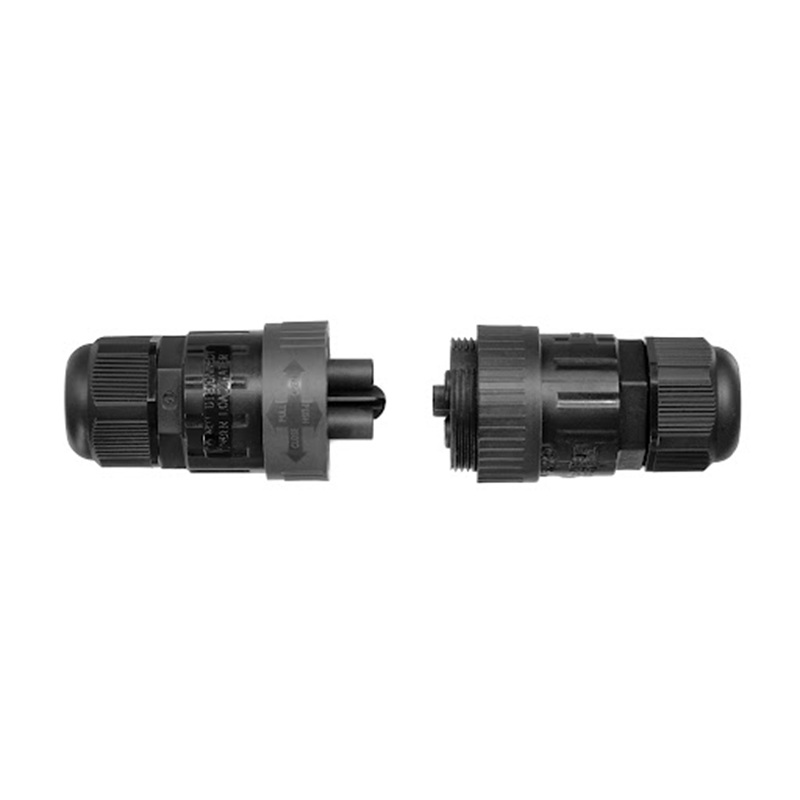

Product name: WP68 Waterproof Connectors
The waterproof connectors WP68 are intended for making connections in permanent and temporary electrical installations under IP68 in a fast and safety way.
Material:
- Body: Polyamide 6.6 and Polyamide 6.6 with 30% of glass fiber
- Insert: nickel-plated brass
- Screws: zinc-plated steel, Metric thread
- IP Rate: IP68
Halogen Free
Compliance: EN 61984, EN60998-1 2004, EN60998-2-1 2004, EN62444 2013, UL2238, CE, RoHS

Model	Type	Solid Cable	Flexible Cable	Screw	Poles	Voltage	Current Rating	Temperature	Price
WP2/M	Plug	0.5 mm² / 2.5 mm²	1.0 mm² / 2.5 mm²	M 3	2	450 V	17.5 A	-40 °C / +85 °C	Price on request
WP2/H	Socket	0.5 mm² / 2.5 mm²	1.0 mm² / 2.5 mm²	M 3	2	450 V	17.5 A	-40 °C / +85 °C	Price on request
WP3/M	Plug	0.5 mm² / 2.5 mm²	1.0 mm² / 2.5 mm²	M 3	2 + ⏚	450 V	17.5 A	-40 °C / +85 °C	Price on request
WP3/H	Socket	0.5 mm² / 2.5 mm²	1.0 mm² / 2.5 mm²	M 3	2 + ⏚	450 V	17.5 A	-40 °C / +85 °C	Price on request
WP4/M	Plug	0.5 mm² / 2.5 mm²	1.0 mm² / 2.5 mm²	M 3	4	450 V	17.5 A	-40 °C / +85 °C	Price on request
WP4/H	Socket	0.5 mm² / 2.5 mm²	1.0 mm² / 2.5 mm²	M 3	4	450 V	17.5 A	-40 °C / +85 °C	Price on request
WP5/M	Plug	0.5 mm² / 1.5 mm²	1.0 mm² / 1.5 mm²	M 2.5	4 + ⏚	450 V	15 A	-40 °C / +85 °C	Price on request
WP5/H	Socket	0.5 mm² / 1.5 mm²	1.0 mm² / 1.5 mm²	M 2.5	4 + ⏚	450 V	15 A	-40 °C / +85 °C	Price on request

Model	Type	Solid Cable	Flexible Cable	Screw	Poles	Voltage	Current Rating	Temperature	Quantity	Order	Price
WP2/EH	Socket	0.5 mm² / 2.5 mm²	1.0 mm² / 2.5 mm²	M 3	2	450 V	17.5 A	-40 °C / +85 °C			Price on request

Model	Type	Solid Cable	Flexible Cable	Screw	Poles	Voltage	Current Rating	Temperature	Price

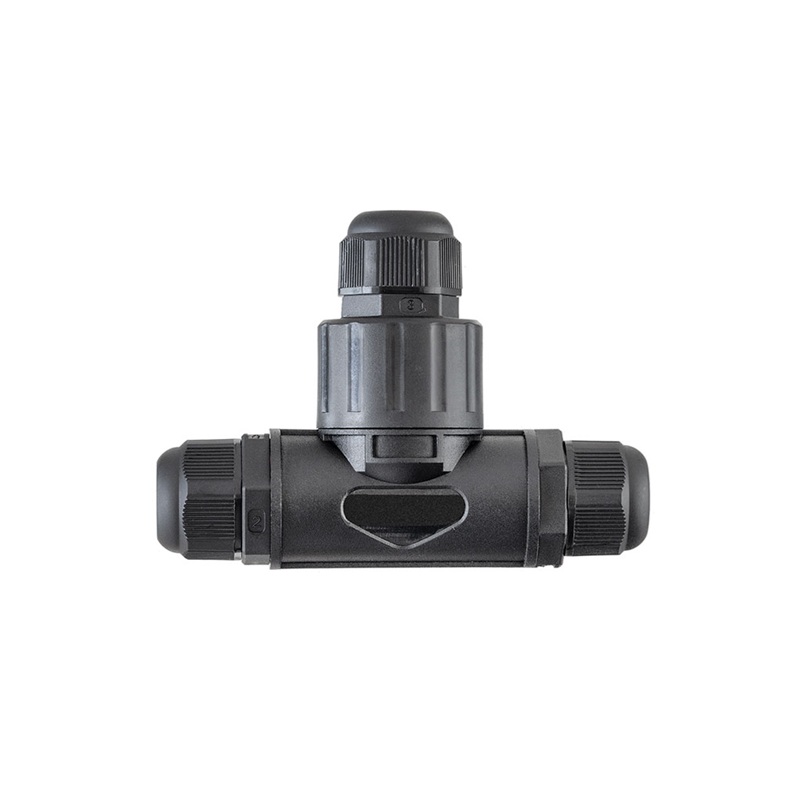

WP2/DT	1 Input / 2 Outputs	0.75 mm² / 1.5 mm²	0.75 mm² / 1.5 mm²	M 3	2	450 V	24 A	-40 °C / +85 °C	Price on request
WP3/DT	1 Input / 2 Outputs	0.75 mm² / 1.5 mm²	0.75 mm² / 1.5 mm²	M 3	2 + ⏚	450 V	32 A	-40 °C / +85 °C	Price on request
WP3/DTE	1 Input / 2 Outputs				2 + ⏚	450 V	32 A	-40 °C / +85 °C	Price on request
